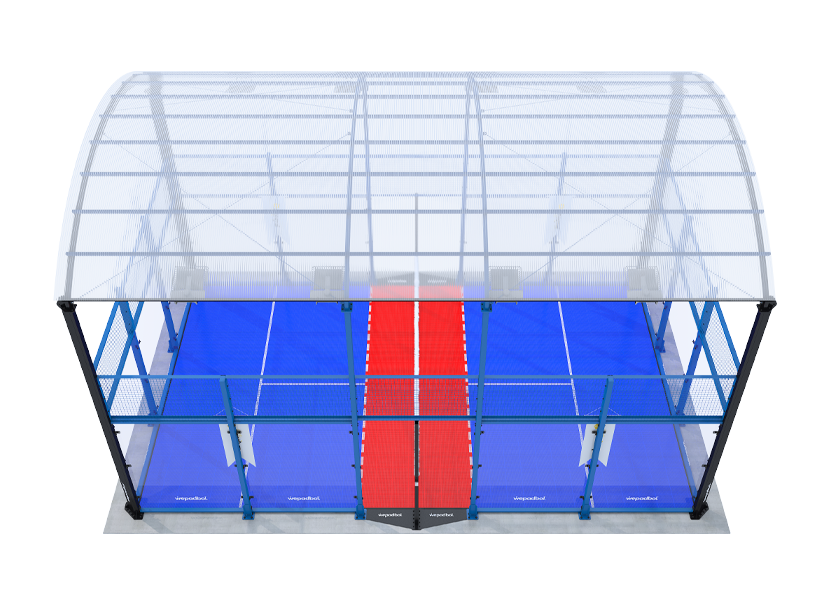

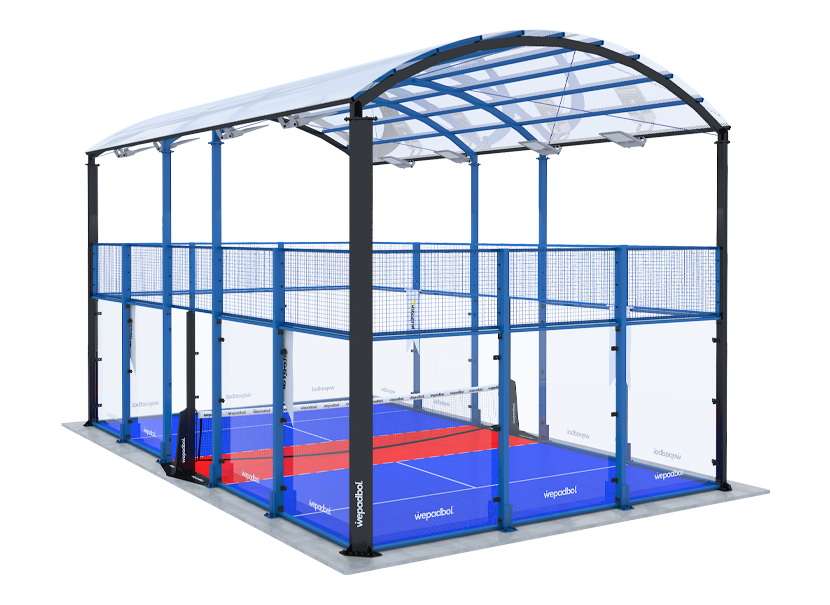

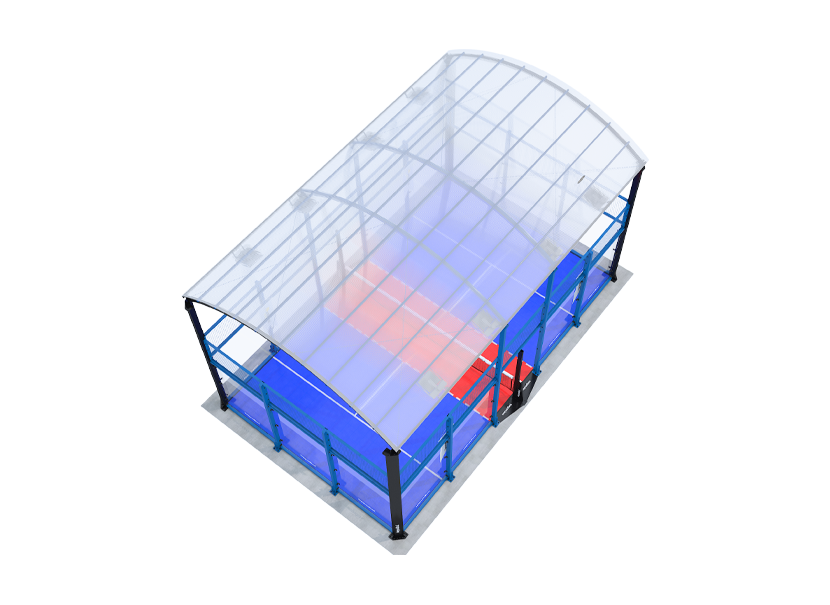

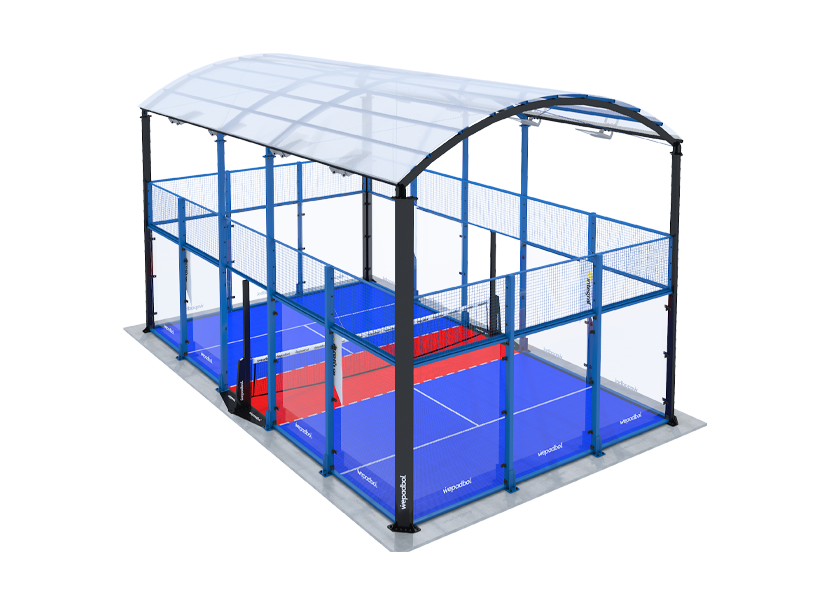

Origin Roofed Pista de Padbol
El Origin Roofed Pista de Padbol es una pista de 6x10 metros rodeada por una estructura de acero, vidrio templado y paneles de malla metálica galvanizada. Construida con suelo modular de PVC o césped sintético opcional, incluye un techo de policarbonato y iluminación LED. Diseñada según los estándares internacionales de padbol, ofrece durabilidad, comodidad y seguridad para el juego en exteriores.
El Origin Roofed Pista de Padbol cuenta con una estructura de acero duradera, suelo deportivo de alto rendimiento, diseño arquitectónico elegante, instalación modular rápida y exigencias de mantenimiento a largo plazo excepcionalmente bajas.
| INFORMACIÓN TÉCNICA | |||||||
| Dimensiones de la pista | Ancho: 6 metros | Longitud: 10 metros | |||||
| Infraestructura | Ancho: 40 cm - Altura: 50 cm | Hormigón C30 | |||||
| Drenaje de agua | El agua se evacua desde la superficie mediante una pendiente del 0,5% en el suelo de hormigón en una dirección. | ||||||

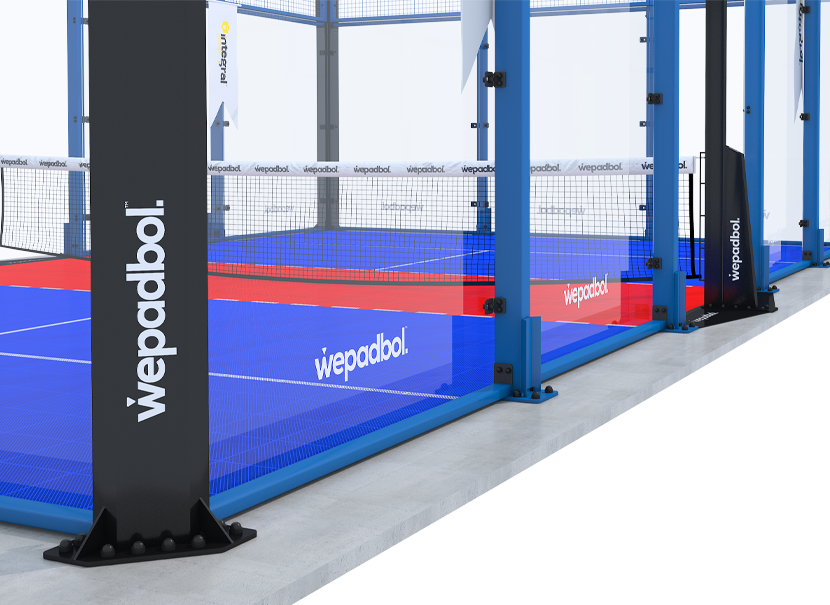

| Estructura de acero | Columnas de esquina dobles: 80 x 120 x 3 mm / Vigas: 40 x 80 x 2,5 mm / Sistema modular atornillado | Columnas intermedias: 80 x 120 x 3 mm / Altura: 3,50 m | |||||
| Malla de acero | Apertura de malla: 50 mm x 50 mm | Grosor del alambre: 4 mm | |||||
| Superficie de acero | Recubrimiento electrogalvanizado | Recubrimiento en polvo electrostático | |||||
| Resistencia | Velocidad máxima del viento: 90 km/h | ||||||
| Vidrio | Vidrio templado de 10 mm | ||||||
| Cubierta del techo | Lámina de policarbonato | ||||||
| Iluminación | 8 proyectores LED de 200 W | ||||||
| Césped sintético | Césped sintético FB - MFF - TXT de 11 - 13 mm | ||||||

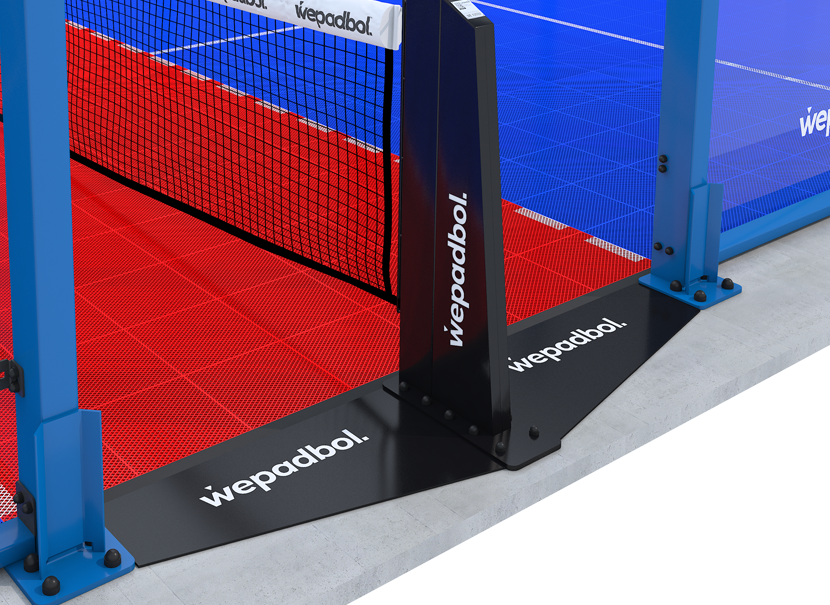

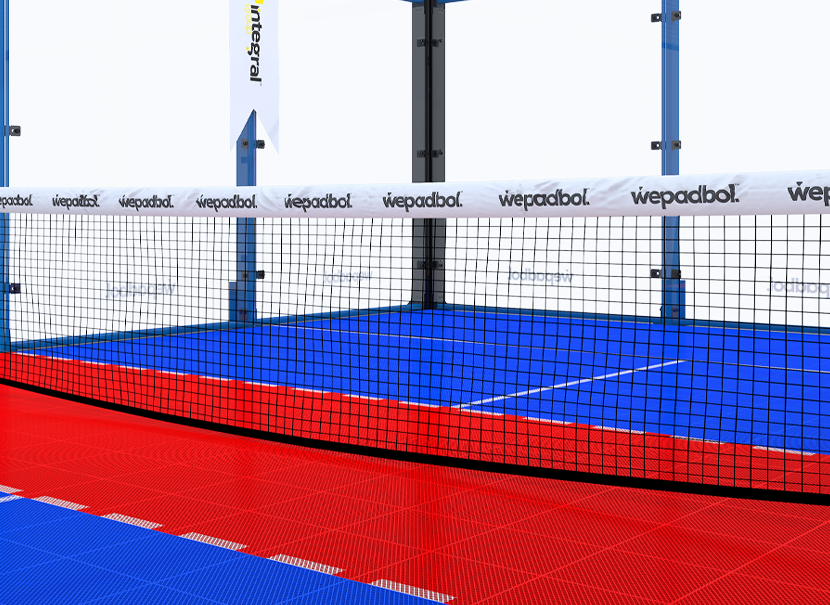

| Equipamiento | Postes y red de padbol | ||||||
1. Which standards is the Origin Roofed Padbol Court manufactured according to?
The Origin Roofed model is designed according to the official game rules and measurements of the Padbol sport. The steel construction, tempered glass, steel mesh, modular PVC flooring, and polycarbonate roof covering meet international standards in terms of safety, durability, and game performance.
2. Is the Origin Roofed Padbol Court suitable for outdoor or indoor use?
The Origin Roofed Padbol court is specifically designed for outdoor use. The polycarbonate roof covering used in the upper section provides protection against both rain and sunlight. Thanks to the galvanized coating, electrostatic powder paint, high wind resistance (90 km/h), and the weather-resistant roof system, it offers safe outdoor use throughout the year.
3. What are the technical dimensions and height of the Origin Roofed model?
The dimensions of the Origin Roofed court are 10 meters in length and 6 meters in width. The construction height is 3.50 meters, and the system is assembled with a modular bolted structure. The steel columns and beams are designed to provide high durability together with the roof covering.
4. With which flooring system is the Origin Roofed Padbol Court delivered?

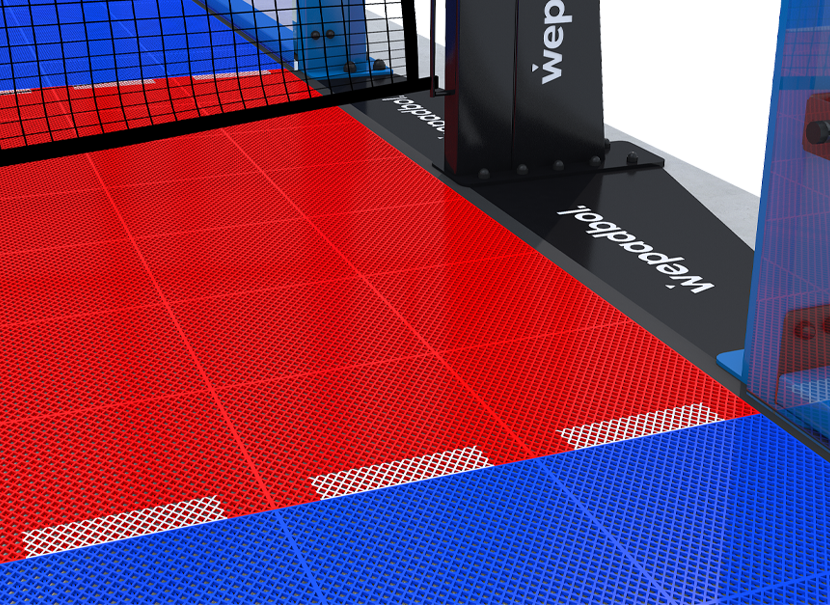

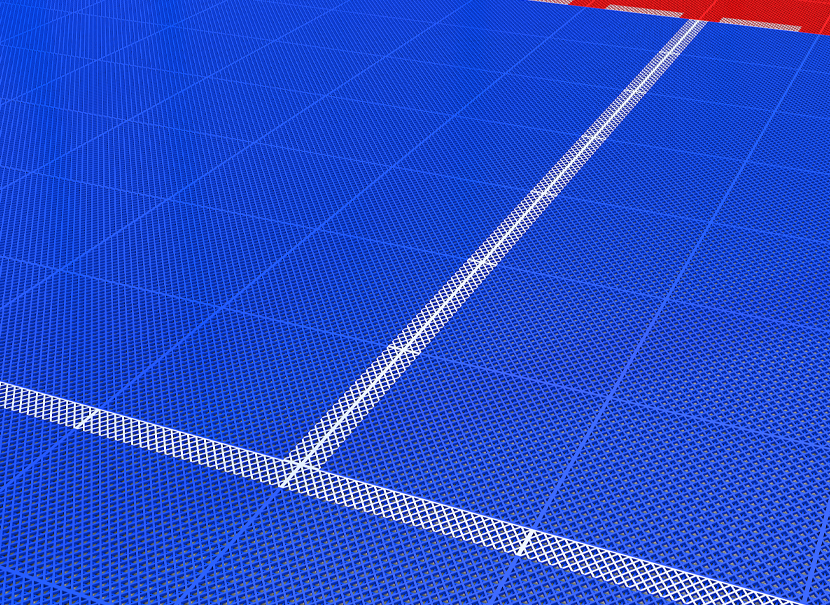

The standard flooring system of the Origin Roofed model is Modular PVC sports flooring (30×30 cm interlocking). This flooring provides fast drainage, high slip resistance, and durability. Optionally, 11–13 mm UV-enhanced synthetic turf can also be applied.
5. How long does the production and installation process of the Origin Roofed Padbol Court take?
Infrastructure: 2 days Steel Mesh Production: 10 days Steel Construction Manufacturing: 15 days Roof Cover Production: 15 days Glass Manufacturing: 7 days Lighting Manufacturing: 7 days PVC Flooring Supply: 7 days Installation times: • Construction Installation: 5 days • Glass Installation: 2 days • Roof Installation: 4 days • Lighting Installation: 2 days • PVC Flooring Installation: 1 day As various stages can run simultaneously, the total delivery time is generally between 3–5 weeks.
6. What maintenance procedures are required for the Origin Roofed Padbol Court?
Since the Origin Roofed model is designed for outdoor use, its maintenance processes are quite simple: Steel Construction & Mesh: Resistant to weather conditions with galvanization + electrostatic powder paint. Periodic cleaning is sufficient. Roof Covering (Polycarbonate): UV-resistant material; occasional surface cleaning is recommended. Tempered Glass Panels: Regular surface cleaning ensures more comfortable gameplay. Modular PVC Flooring: Its perforated structure ensures rapid rainwater drainage; sweeping and periodic washing are sufficient. Optional Synthetic Turf: Its form is preserved through regular brushing and sand support. These maintenance steps ensure long life under outdoor conditions.
