Panoramic Pista de Padbol

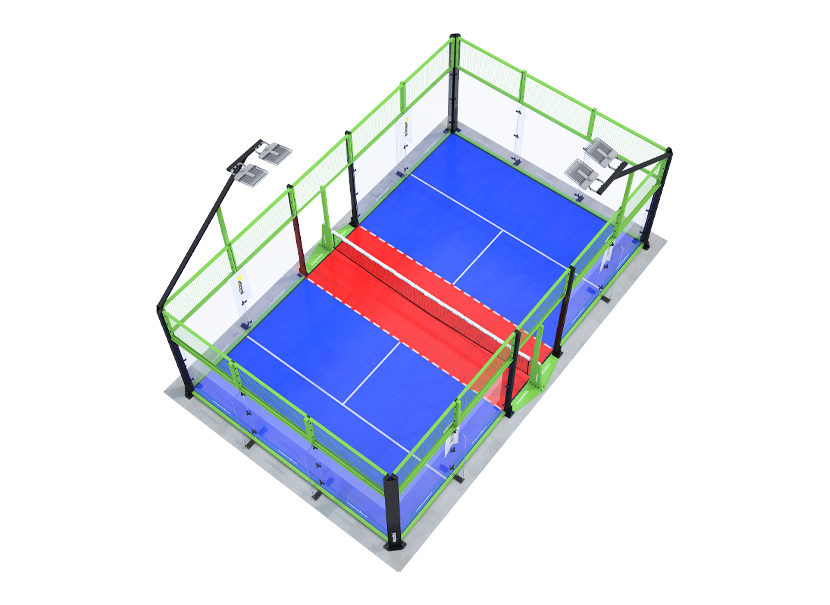

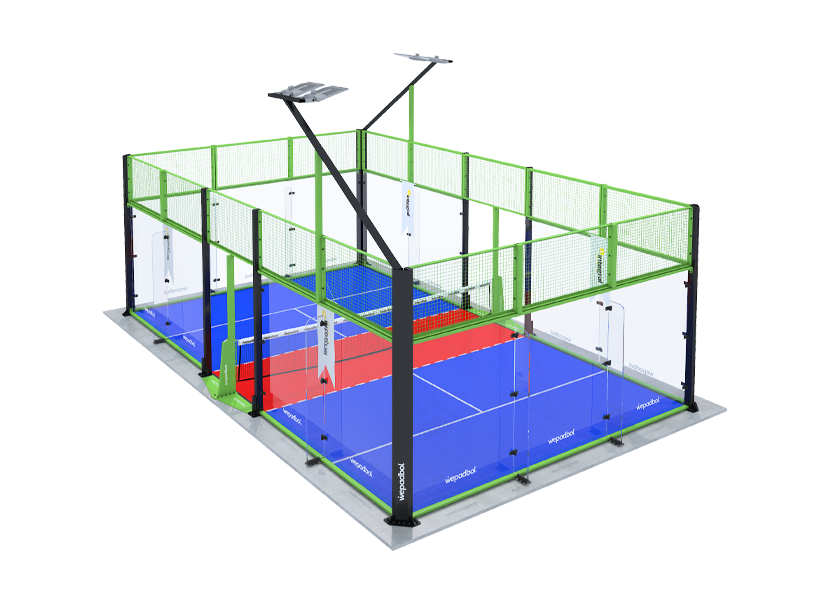

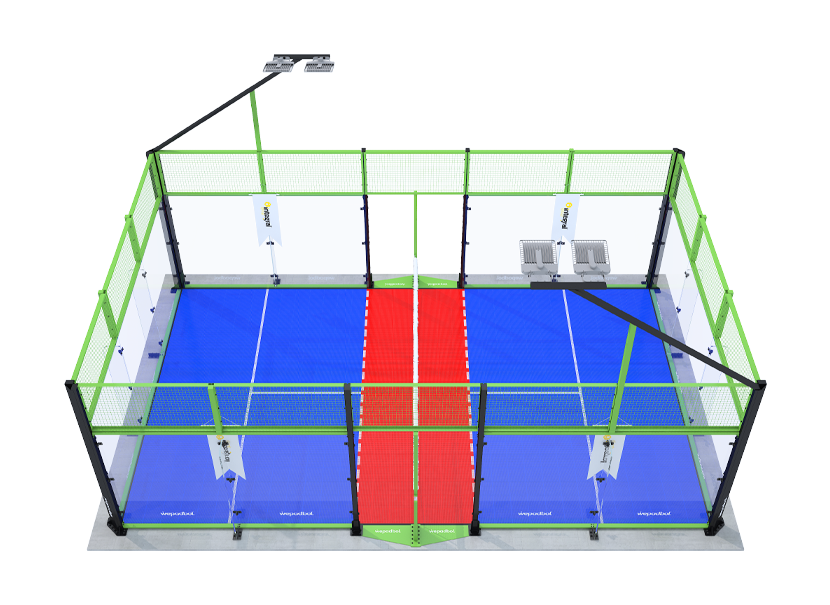

El Panoramic Pista de Padbol es una pista de 6x10 metros, diseñada con una estructura panorámica de acero, vidrio templado y paneles de malla metálica galvanizada. Construida con suelo modular de PVC o césped sintético opcional, ofrece máxima visibilidad y durabilidad. Adecuada tanto para interiores como exteriores, brinda una experiencia de juego segura, elegante y de alto rendimiento.
La Panoramic Pista de Padbol ofrece una experiencia de juego moderna gracias a sus amplios paneles de vidrio sin marco, su estructura de acero duradera y su suelo deportivo de alto rendimiento. Su apariencia elegante, instalación rápida y bajo mantenimiento la convierten en una opción ideal para instalaciones profesionales.
| INFORMACIÓN TÉCNICA | |||||||
| Dimensiones de la Pista | Ancho: 6 metros | Largo: 10 metros | |||||
| Infraestructura | Ancho: 40 cm - Altura: 50 cm | Hormigón C30 | |||||
| Infraestructura - Hormigón del Campo | Hormigón C20 con malla de acero de 15 cm de espesor | ||||||
| Drenaje de Agua | El agua se evacúa dando una pendiente del 0,5% al suelo de hormigón en una dirección. | ||||||

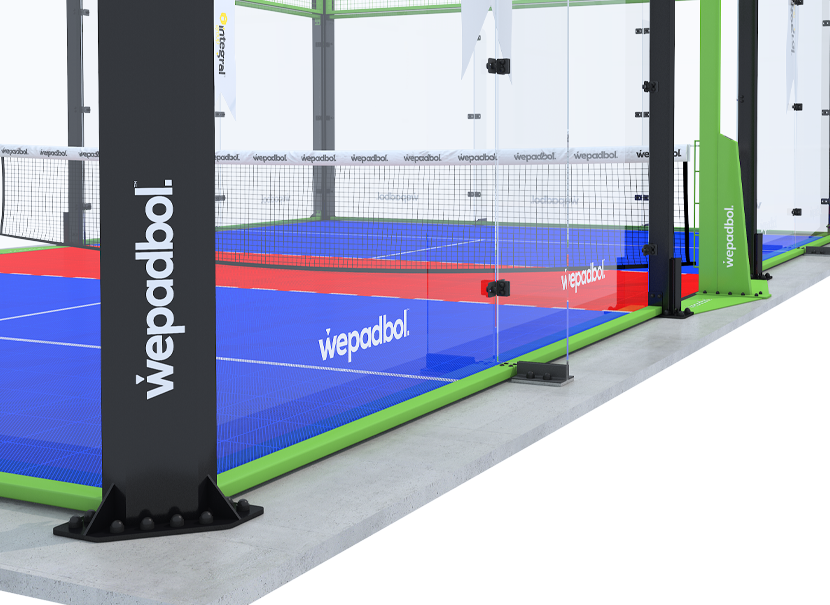

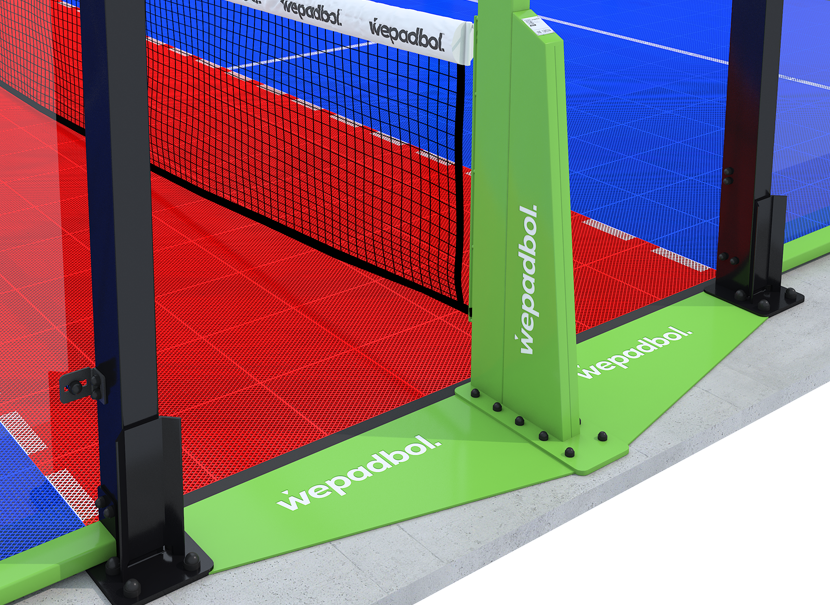

| Construcción de Acero | Columnas de esquina dobles: 80 x 120 x 3 mm Vigas: 40 x 80 x 2.5 mm / Sistema modular atornillado |
Columnas intermedias: 80 x 120 x 3 mm Altura: 3.50 m |
|||||
| Malla de Acero | Espaciado de la malla: 50 mm * 50 mm | Grosor del alambre: 4 mm | |||||
| Revestimiento de Superficie de Acero | Recubrimiento electrogalvanizado | Pintura electrostática en polvo | |||||
| Resistencia | Velocidad máxima del viento: 70 km/h | ||||||
| Vidrio | Vidrio templado de 12 mm | ||||||
| Iluminación | 4 x 200 W Proyectores LED | ||||||
| Césped Sintético (Opcional) | Césped sintético de 11 - 13 mm FB - MFF - TXT | ||||||
| Equipamiento | Porterías y red de Padbol | ||||||
1. Which standards is the Panoramic Padbol Court manufactured according to?
The Panoramic model is designed in accordance with the official measurements and game standards of Padbol. The steel construction, 12 mm tempered glass, steel mesh, and modular PVC flooring system meet international safety and performance criteria.
2. Is the Panoramic Padbol Court suitable for outdoor or indoor use?
The Panoramic model is designed to be used in both outdoor and indoor areas. Its steel construction and glass structure are suitable for both usage types.
3. What are the technical dimensions and height of the Panoramic model?
The dimensions of the Panoramic court are 10 meters in length, 6 meters in width, and 3.50 meters in height. The entire construction is assembled using a modular bolted system.
4. With which flooring system is the Panoramic Padbol Court delivered?

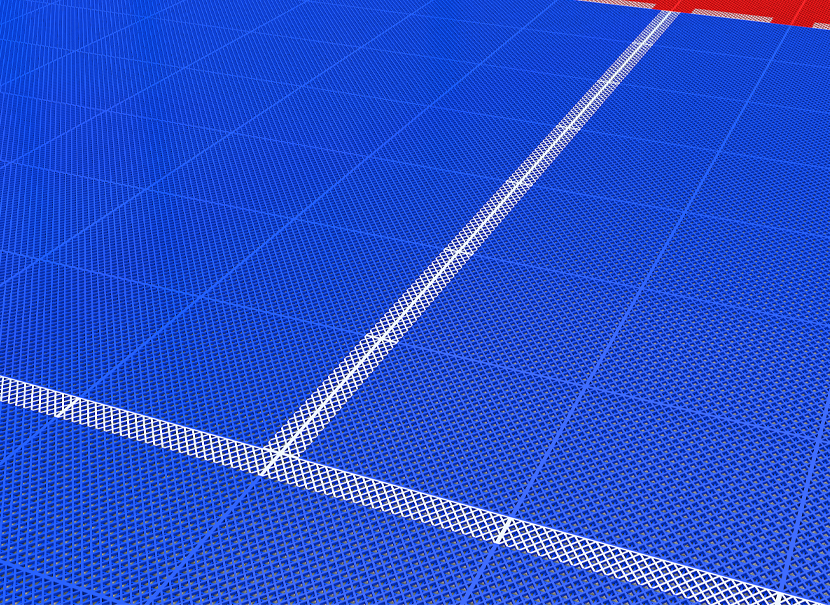

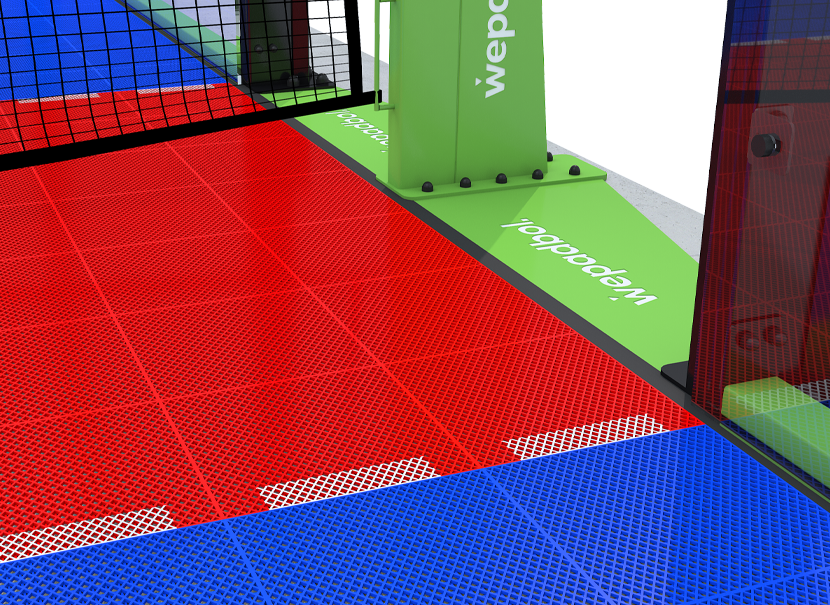

The standard flooring of the Panoramic model is Modular PVC sports flooring (30×30 cm interlocking system). Optionally, 11–13 mm UV-enhanced synthetic turf may also be applied.
5. How long does the production and installation process of the Panoramic Padbol Court take?
Infrastructure: 2 days Steel Mesh Production: 10 days Steel Construction Production: 15 days Glass Manufacturing: 7 days Lighting Manufacturing: 2 days PVC Flooring Supply: 7 days Installation: Steel Construction: 5 days Glass Installation: 2 days Lighting: 1 day PVC Flooring: 1 day As many stages can run simultaneously, total delivery time varies between 2–4 weeks.
6. What maintenance procedures are required for the Panoramic Padbol Court?
Since the Panoramic model is suitable for both indoor and outdoor use, the maintenance steps are quite simple: Steel Construction & Mesh: Durable thanks to galvanization and electrostatic powder paint; routine cleaning is sufficient. 12 mm Tempered Glass: Periodic surface cleaning is recommended. Modular PVC Flooring: Its perforated structure facilitates water drainage; sweeping and washing maintain the floor. Optional Synthetic Turf: Performance is maintained with brushing and silica sand support when necessary.
7. What are the differences between the Panoramic and Origin Padbol Courts?
The Panoramic Padbol Court offers a more transparent and premium design compared to the Origin model. The 12 mm tempered glass used in the Panoramic model is more durable than the 10 mm glass in the Origin model and provides an uninterrupted viewing area. Additionally, while the Panoramic model can be used in both indoor and outdoor environments, the Origin model is manufactured only for outdoor use. In terms of wind resistance, the Origin model offers higher durability at 90 km/h, while the Panoramic offers 70 km/h. In summary, the Panoramic model is ideal for facilities prioritizing aesthetics and visual quality, whereas the Origin model is a perfect choice for projects seeking outdoor durability and robustness.
